Wireless Video Tx/Rx FPV Channels

Below are various channels and switch configurations for some Boscam Video Tx/Rx hardware.

Receivers

Boscam RC805

Transmitters

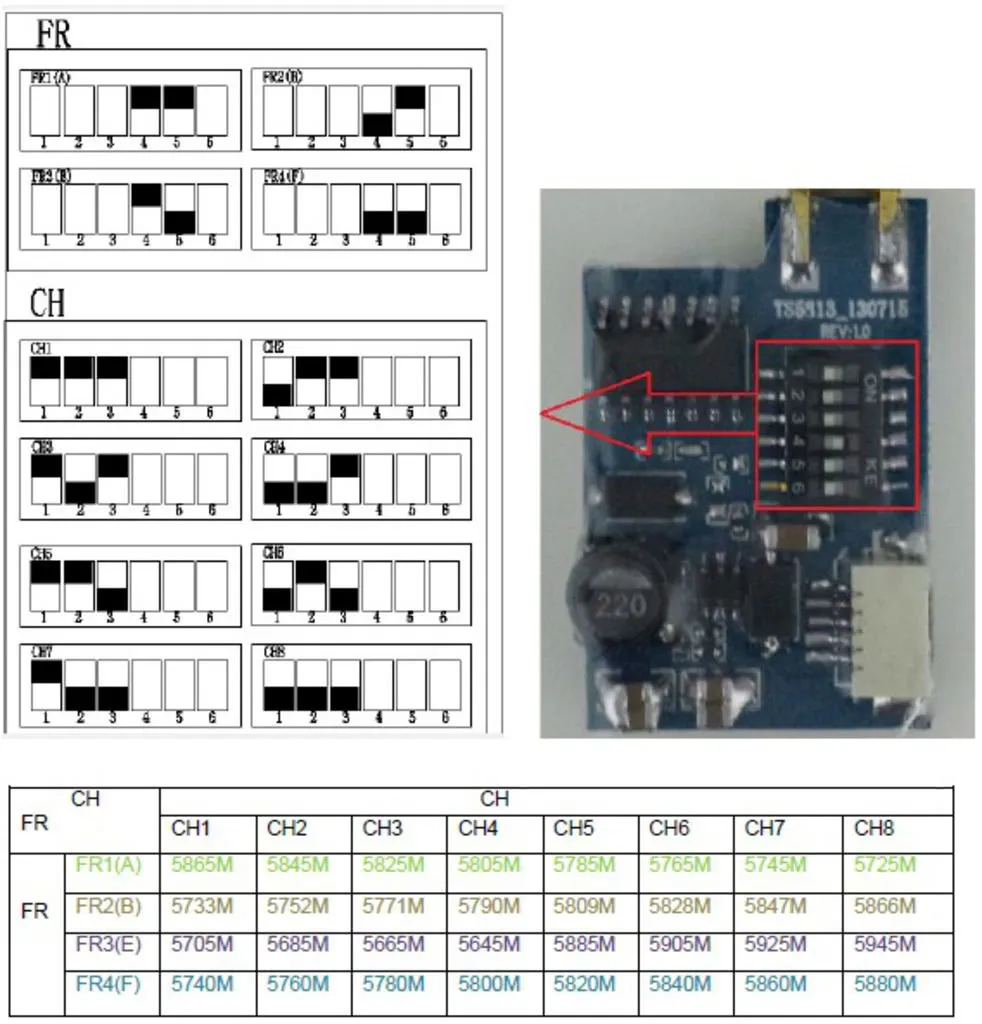

Boscam TS5828

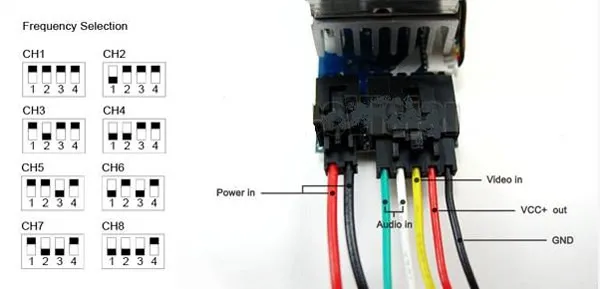

Boscam TS531

CH1: 5705 CH2: 5685 CH3: 5665 CH4: 5645 CH5: 5885 CH6: 5905 CH7: 5925 CH8: 5945

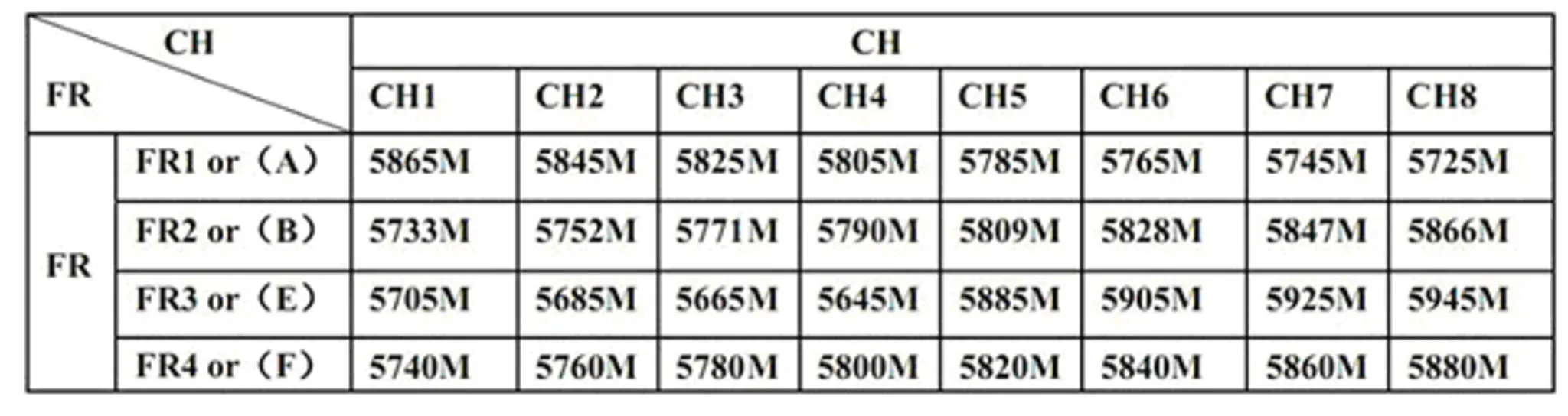

ELGAE FOV127 FPV200

FatShark

CH1: 5740 CH2: 5760 CH3: 5780 CH4: 5800 CH5: 5820 CH6: 5840 CH7: 5860

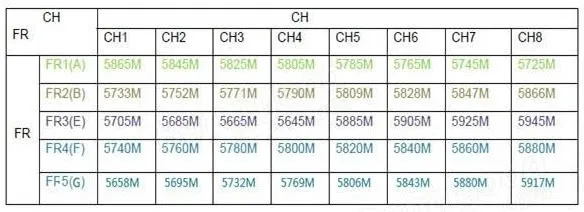

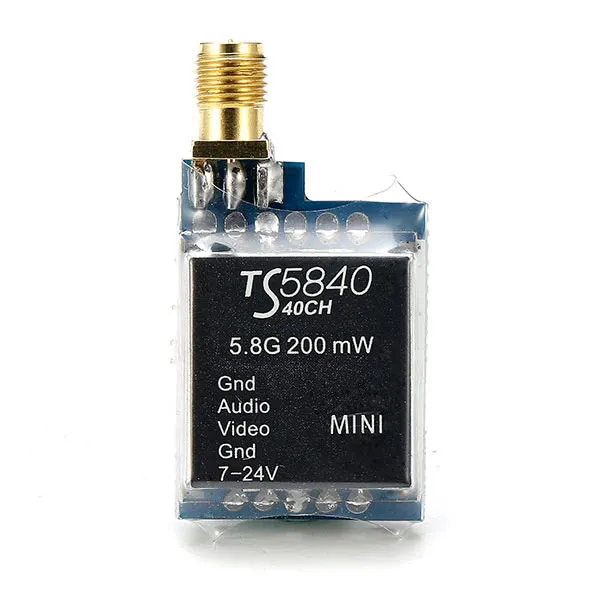

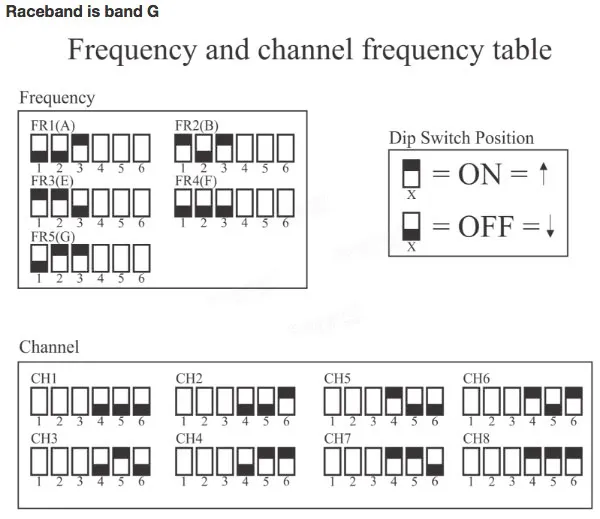

TS5840
